Cantilever Sliding Gates

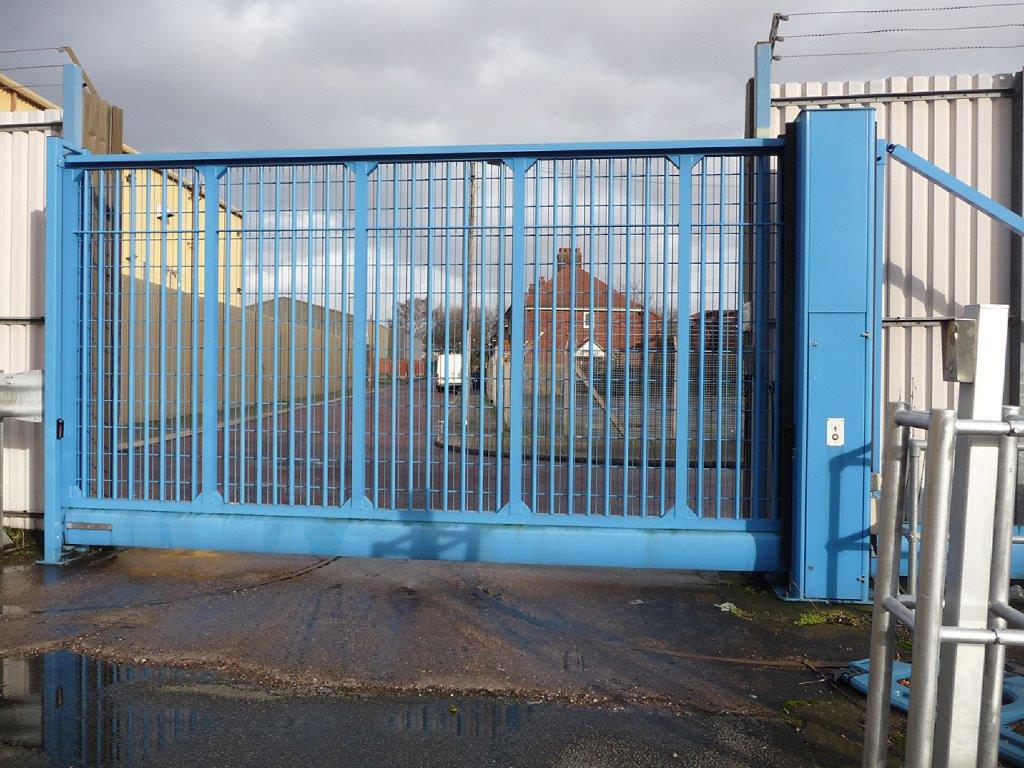

Cantilever Sliding Gates

Where the use of conventional swinging gates are not feasible due to space restrictions, Cantilevered Sliding Gate is an, ideal solution. We can supply a custom built gate to match existing fencing/surroundings ensuring that the finished product is exactly what is required. The standard round tube infill can be replaced by a variety of infill options including D or W profile palisade pales, timber panels, solid sheeting and various mesh panels to integrate perfectly with all fence types. The cantilever design means that the gate is supported from one end as it opens and closes, so there is no need for a track to be fitted across the entrance. A single leaf cantilever gate can span widths of up to 10m and be installed on uneven ground, over block-paving, grass, gravel or even water. The gate glides on two sets of support/guide rollers, fixed to a concrete foundation, hidden within the main lower beam extrusion protecting them from the elements ensuring a reliable, smooth and virtually silent operation.

Automatic Swing Gates

Comply with BS/EN 12453 (the current legislation ALL automated gates must comply with). We fit as standard a number of safety devices. The very neat precise housing design accommodates the control panel within the column. This gives a smooth finished appearance. The gates are controlled by a purpose made controller, single phase supply, via an inverter controlled output to a 3 phase motor. This can be configured very easily for all the standard program modes including no passage time outs & free exit and entry loops to name a few.
